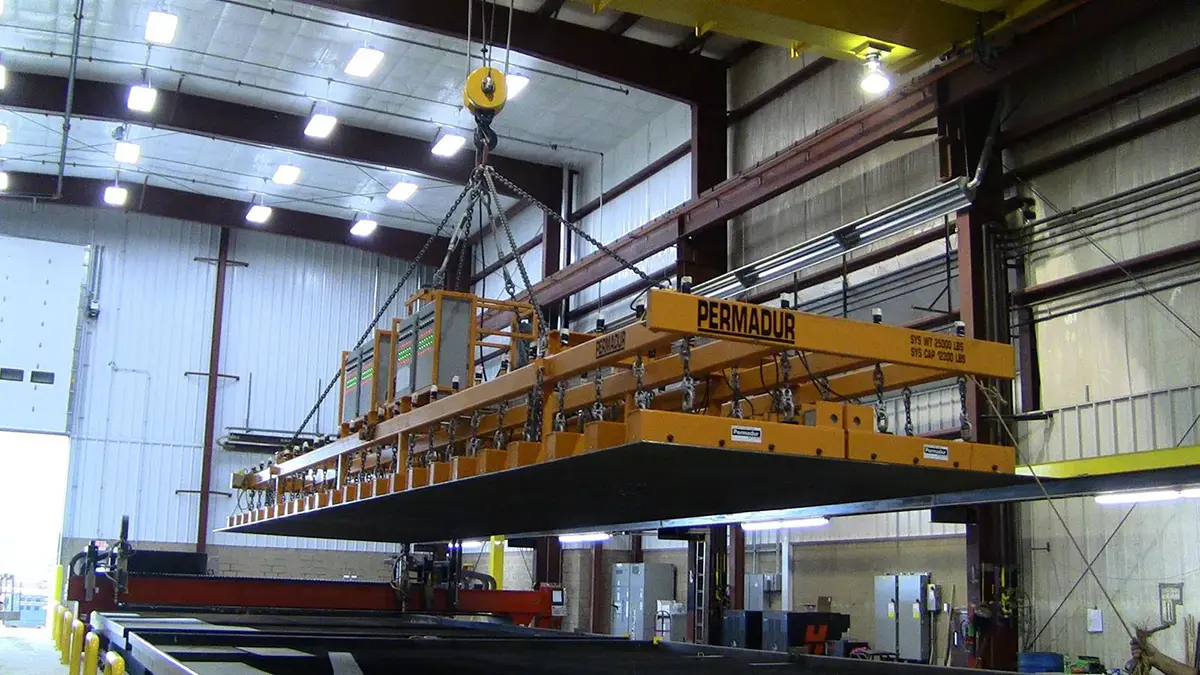

Utilizing the performance and safety features of the Permadur Plate Lifting Magnets, these steel plate handling systems can be manned with a single operator as well as handle a single plate off of a stack. All of which can significantly increase your material handling efficiency. Let Permadur’s application engineers custom design a Plate Handling System to best fit your material handling application.

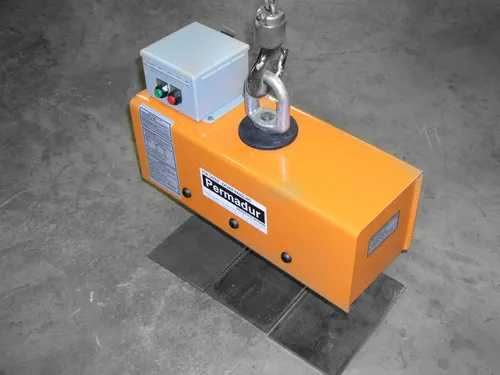

Permadur Magnets, which are Electrically Controlled Permanent Lifting Magnets, will not drop a suspended load due to power failure, faulty wiring, or misoperation of controls.

• Tremendous Magnet Capacity to Weight Ratio
• 3 to 1 Safety Factor
• Utilizes the most powerful permanent magnetic ma- terial available (NdFeB)
• Simple Lever Operation with Safety Lock
• Extremely Compact, light, portable
• Great Durability
• VERY Economical

Permadur Vacuum Lifting Systems provide a lighter, more economical way of addressing a wide range of Aluminum, SS, and Carbon Steel Plate Handling Applications. Permadur System’s have a wide range of Pad sizes and Pad material as well as various size Vacuum Pumps to support the design and build of Systems to the individual customer’s application.

https://permadur.com/vacuum-lift-systems.html

Vacuum Lift Systems

Built in to every System is a Vacuum Reservoir to support holding the load if power fails. Systems are designed with an industry leading 3 to 1 Safety Factor and Meet ASME BTH-1 Standards: Design Category “B”, Service Class “2”.
